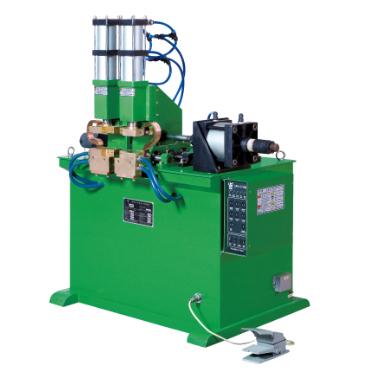

Versatile Flash Butt Welding Machine

The versatile flash butt welding machine is equipped with a pneumatic clamp with vertical cylinder attachment to provide quick and strong clamping. The flash butt welder is widely used for the welding of metal wires, rods, panels, or other metal materials with special shapes.

Features

Specially shaped electrode for the excellent welding of vertical butt joints
Welding rectifier and silicon power rectifier convert alternating current (AC) to direct current (DC)
A track carriage guide with two axes boasts high accuracy and wear- resistance and provides running stability to make consistent joint quality.
The processes of pre-heating, flashing, upsetting are all carried out by the easy-to-use microprocessor precision control
High Si content electrical steel sheets allow for large output direct current, which is energy saving and environmentally friendly
Chillers at temperatures exceeding the dew point can be set to avoid internal sweating of the machine’s transformer and silicon-controlled rectifier (SCR), which can cause an electrical short.

Parameter

Item	Unit	UN-25	UN-40	UN-63	UN-80	UN-100
Rated voltage	V	380
Rated frequency	HZ	50/60
Rated capacity	KVA	25	40	63	80	100
Rated duty cycle	%	30
Insulation class		B
Maximum secondary short circuit current	A	8000	12000	20000	24000	28000
Maximum welding power	KVA	35	63	80	100	125
Maximum pressure	N	3900	3900	3900	6100	6100
Maximum forging force	KN	1.5	1.5	1.5	2.5	2.5
Input air pressure	Mpa	0.5
Cooling water flow	L/min	5	5	5	7	7

Since our establishment in 1999, Darui has been engaged in the design and production of various types of resistance welders, including spot welders, butt welders, seam welders, and more. We have the capabilities to offer you with superior custom service according to your different welding requirements. Our welding machines are widely applied in the manufacturing of home appliances, aviation equipment, electronics, automobiles, furniture, etc. We have earned the trust of customers at home and abroad.
