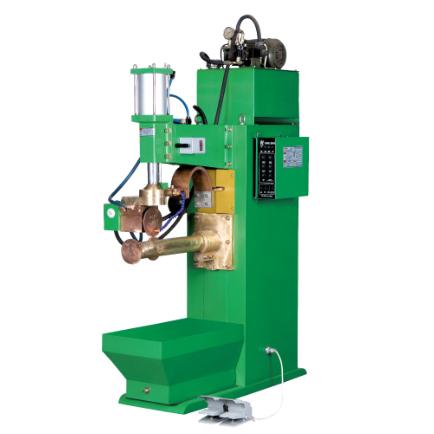

Automatic Foot Operated Seam Welder

Automatic Foot Operated Seam Welder

The automatic foot operated seam welder is operated under microprocessor precision control and can complete vertical and horizontal welds to improve productivity. The welder is widely used for the seal welding of tanks or cans produced from low carbon steel and stainless steel. This welding equipment adopts pneumatic clamp cylinders to maintain high welding accuracy.

Features
  • The two-phase electrical power makes appropriate changes to the current waveform to enhance the pre-heating and welding quality of metal materials.
  • DRS-Ⅲ microprocessor-based resistance welding control and modular circuit monitoring system are used in machine parameter settings and adjustment.
  • Variable-frequency drive maintains strong anti-interfere ability to guarantee the welding process stability
  • Microcomputer control adopts the charging mode of constant current and constant voltage to ensure the welding quality under different variations of grid voltage.
  • Manual feeding, automatic welding, manual discharge
  • Vertical and horizontal welding are adopted
  • Optional accessories and functions: copper bearing, silver bearing, hypoid gear correction
Parameter
Model FN-80 FN-100 FN-150
Item Unit
Rated voltage V 380
Rated frequency HZ 50/60
Rated capacity KVA 80 100 150
Rated duty cycle % 20
Insulation class B
Maximum secondary short circuit current A 16000 18000 21000
Maximum welding power KVA 120 150 200
Maximum pressure N 6100 6100 10000
Maximum welding ability low-carbon steel mm 1.5+1.5 1.8+1.8 2.0+2.0
stainless steel mm 1.2+1.2 1.5+1.5 1.5+1.5
Input Air pressure Mpa 0.5
Cooling water flow L/min 20 20 20
Control mode numerical control
Stroke MM 100 100 100
Welding speed M/min 0.6-3.0

Since our establishment in 1999, Darui has been engaged in the design and production of various types of resistance welders, including spot welders, butt welders, seam welders, and more. We have the capabilities to offer you with superior custom service according to your different welding requirements. Our welding machines are widely applied in the manufacturing of home appliances, aviation equipment, electronics, automobiles, furniture, etc. We have earned the trust of customers at home and abroad.
