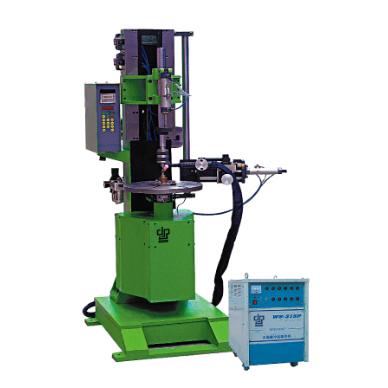

Circumferential TIG Welding Machine

The circumferential TIG welding machine is a type of cost-effective and easy-to-use piece of compact welding equipment. It is typically applied to the circumferential welding of small workpieces with a length less than 500mm.

Features

Programmable logic controllers (PLCs), automatic welding control devices, manual adjustment functions for the control of welding process
Welding rotating table motivated by direct-current (DC) generator adopts stepless speed regulation. The speed is displayed on the control panel
A wire feeder provides an independent control of wire feed speed, which has strong anti-interference capability and is easy to operate
Digital setting of the welding time to ensure excellent welding quality

Parameter

Model		FH-150	FH-300	FH-500
Item	Unit	FH-150	FH-300	FH-500
Rated voltage	V	220
Rated frequency	HZ	50/60
Rated power	KW	0.5
Working mode		continual
Insulation class		B
Maximum welding diamater	mm	150	300	500
Maximum work piece length	mm	50-500	100-500	200-600
Clamping stroke	mm	150	150	150
Angle	degree	90°/45°/180°
Input air pressure	Mpa	0.5
Stroke	mm	50
Speed	M/min	0.6-3.0

Since our establishment in 1999, Darui has been engaged in the design and production of various types of resistance welders, including spot welders, butt welders, seam welders, and more. We have the capabilities to offer you with superior custom service according to your different welding requirements. Our welding machines are widely applied in the manufacturing of home appliances, aviation equipment, electronics, automobiles, furniture, etc. We have earned the trust of customers at home and abroad.
