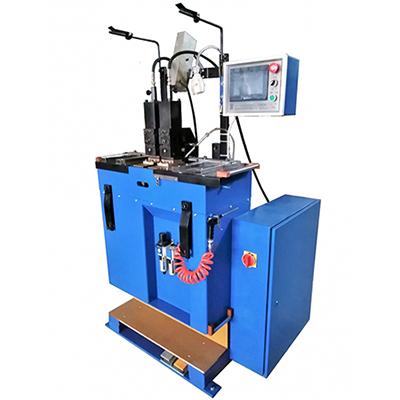

Band Saw Blade Welder

Designed according to market demands, Darui has successfully developed a flash band saw blade butt welding machine used to weld band saw blades. Quality welding for this application, greatly improves the performance, safety, and longevity of band saw machines. The resistance welder is used to achieve consistent welding results for bi-metal band saw blades and high speed steel band saw blades.

The highly automated system of the flash band saw blade butt welding machine features adjustable parameters and is capable of producing high quality band saw blades without the need for manual intervention. With a fully automatic welding and annealing system, our equipment was developed to accurately control the welding quality of band saw blades that are small, such as those with a weld width less than 3mm.

Darui specializes in offering a wide range of band saw blade welders in any size to manufacture band saw blades made of different raw materials. Custom band saw blade welders are also available and affordable for your special needs.

• The Darui band saw blade welder a adopts PLC and interface with language switching options for simple operation.
• 24 types of welding parameters of band saw blade can be edited according to different sizes of band saw blade. Automatic data storage allows you to use parameters that have been set previously.
• The high-speed CPU digital control ensures the band saw blade welder has improved sensitivity, strong anti-interference ability to provide high-accuracy band saw blades.
• The welding processes of band saw blade can be manual, semi-automatic, or fully automated.
• Counting function for counting statistics on the number of welds.
• Press and jog the annealing switch button to allow blade to cool slowly by decreasing jogging frequency.
• The welding process of butt flash and upsetting is controlled by motorized cam disc and servo motor controller for quality welding results.
• Maximum operating pressure in the hydraulic and lever system with straight up and down motion.
• Fully automatic welding and annealing system is adopted.
• IR temperature sensor monitors and controls the blade temperature.
