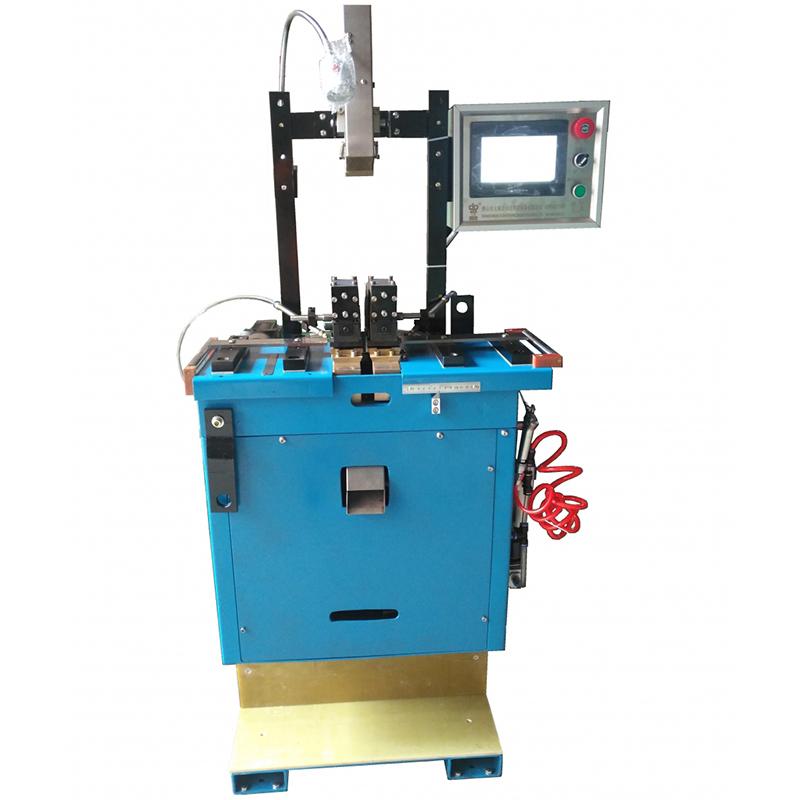

Automatic Band Saw Blade Welder, Pneumatically Operated

Automatic Band Saw Blade Welder, Pneumatically Operated

Our automatic pneumatically operated band saw blade welder is designed for the high precision production of small sized band saw blades typically applied for cutting industrial foam or food processing operations. This welding machine can efficiently join the two ends of blades made of different materials through soldering.

Features

Equipped with a pneumatic cylinder, this welding machine provides flexibility for welding a wide range of tiny band saw blades. The vertical pneumatic clamp of this resistance welder can guarantee the accuracy of the butt joint to provide high quality welding results. Using highly accurate wear-free guides, it can perfectly align welds to ensure performance and safety.

Parameter
Model 3-15 10-27
Item Unit MM MM
Rated voltage V 220
Rated frequency HZ 50/60
Rated capacity KVA 5 8
Rated duty cycle % 20
Insulation class
B
Maximum secondary short circuit current A 4000 6000
Maximum welding power KVA 8 13
Maximum pressure KN 10 10
Maximum forge force KN 1 1
Input air pressure Mpa 0.5
Cooling water flow L/min 3 3
Frequency HZ 0-50
Weight KG 270 300
Maximum welding ability mm² 15 40

Since our establishment in 1999, Darui has been engaged in the design and production of various types of resistance welders, including spot welders, butt welders, seam welders, and more. We have the capabilities to offer you with superior custom service according to your different welding requirements. Our welding machines are widely applied in the manufacturing of home appliances, aviation equipment, electronics, automobiles, furniture, etc. We have earned the trust of customers at home and abroad.
