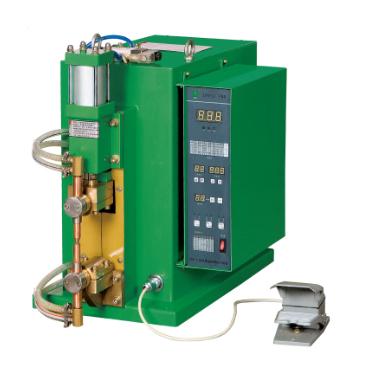

DN Bench Type Spot/Projection Welder

DN Bench Type Spot/Projection Welder

The DN bench type spot/projection welder is widely used for numerous welding process and features reduced installation costs. A standard spot weld with a current path directly through the workpiece between opposing electrodes can be achieved using this resistance welding machine. It operates with lead-free soldering technology, making it an eco-friendly joining method. In compliance with ROHS/SGS standards, this welder delivers excellent temperature tolerance, making it suitable for strategically placed small spot welds.

Features
  • Solid structure with high strength. High structural rigidity of the welding machine arms, holders and inline bearings can insure positive alignment, minimal deflection and reduced friction.
  • Fast electrode response for quick welding. Electrodes are equipped with speed control valves, shock absorber for end of stroke and air discharge silencers to minimize the noise.
  • Insulation protection for safety. Low-friction air cylinder is insulated from the electrode body to ensure heavy duty performance and a long working lifetime.
  • Welding power sources maximizes energy savings. Water-cooled resistance-welding transformers and silicon controlled rectifiers for checking the correct diode clamping force.
Parameter
Model DN-16 DN-25 DN-40
Item Unit
Rated voltage V 380
Rated frequency HZ 50/60
Rated capacity KVA 16 25 40
Rated duty cycle % 30
Insulation class B
Maximum secondary short circuit current A 12500 16000 22000
Maximum welding power KVA 25 35 63
Maximum pressure N 550 550 550
Stroke mm 30 30 30
Air pressure Mpa 0.5
Cooling water flow L/min 5 5 5
Arm extension length 200
Weight KG 135 150 165

Since our establishment in 1999, Darui has been engaged in the design and production of various types of resistance welders, including spot welders, butt welders, seam welders, and more. We have the capabilities to offer you with superior custom service according to your different welding requirements. Our welding machines are widely applied in the manufacturing of home appliances, aviation equipment, electronics, automobiles, furniture, etc. We have earned the trust of customers at home and abroad.
