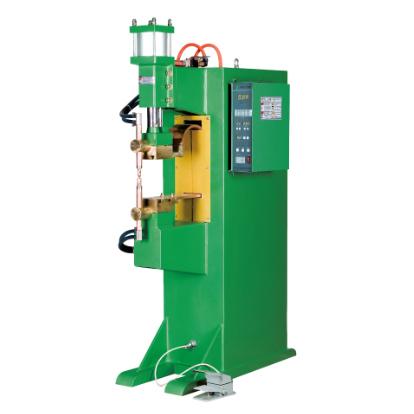

DTN-T Press Spot/Projection Welder

DTN-T Press Spot/Projection Welder

Our DTN-T press spot/projection welder minimizes the time it takes to complete welding jobs with high secondary volts to meet different applications for spot or projection welding. This spot welding machine can also meet diversified demands for the welding of varieties of special materials.

Features
  • Digital setting and display of all operating parameters like weld voltage, power setting, etc.
  • In-memory data storage to prevent accidental data loss.
  • Monitor the voltage fluctuations to prevent it from damaging your data.
  • Adjustable stroke air cylinder and speed control valves to control ram movement down and up.
  • 40 sets of welding parameters are under microprocessor precision control.
  • Error management is adopted for general warnings and major faults through error messages.
Parameter
Model DN-25 DN-40 DN-63 DN-80 DN-100 DN-150 DN-200
Item Unit
Rated voltage V 380
Rated frequency HZ 50/60
Rated capacity KVA 25 40 63 80 100 150 200
Rated duty cycle % 30
Insulation class B
Maximum secondary short circuit current A 13500 19500 25000 30000 35000 41000 46000
Maximum welding power KVA 35 56 89 113 141 212 282
Maximum pressure N 3900 6100 6100 10000 10000 15600 15600
Stroke mm 50 50 50 50 50 50 50
Input air pressure Mpa 0.5
Cooling water flow L/min 5 5 5
Arm extension length mm 320

Since our establishment in 1999, Darui has been engaged in the design and production of various types of resistance welders, including spot welders, butt welders, seam welders, and more. We have the capabilities to offer you with superior custom service according to your different welding requirements. Our welding machines are widely applied in the manufacturing of home appliances, aviation equipment, electronics, automobiles, furniture, etc. We have earned the trust of customers at home and abroad.
