LMD Spot/Projection Welder, Mid-Frequency Welding(MFDC)

LMD Spot/Projection Welder, Mid-Frequency Welding(MFDC)

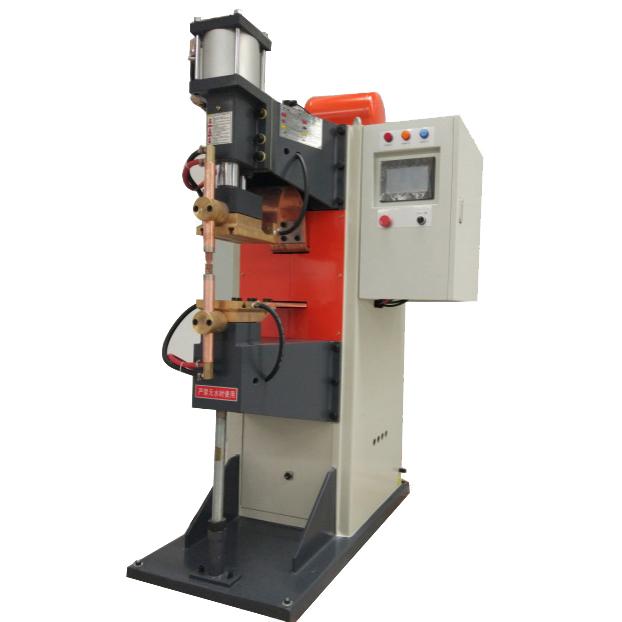

The LMD spot/projection welder delivers consistent welding performance and great thermal efficiency. This equipment is designed for spot welding magnetic materials as well as metals like aluminum alloy and stainless steel. The resistance welder is particularly suitable for welding galvanized steel, bimetallic plate, and other highly conductive materials like copper.

Features
  • This spot welder is pneumatically operated with a built-in compressed air disconnection device to prevent damage to the welder. A filter-Regulator-Lubricator (FRL) is also installed.
  • Resistance welding electrodes made from C18150 copper chromium zirconium offer relatively high electrical and thermal conductivity as well as excellent hardness at high temperatures.
  • Coolant controlled by parallel flow system will flow through the main coolant passages beside each cylinder for its long-lasting durability.
  • Visual flow indicator and ball valve makes it easier to balance the water flow.
  • Spot welding parameters setting and welding spot counter are installed for your regular check and maintenance.
  • Connection points of all copper secondary components of weld transformer are silver plated for energy efficiency, which can save more energy than low-frequency transformers.
  • This resistance welder is configured to measure many combinations of input current, voltage, cooling water flow, silicon controlled rectifier, insulated-gate bipolar transistor (IGBT), etc. to keep it running smoothly.
Parameter
Item LMD40kA Spot Welder, Mid-Frequency Welding
Input voltage 380±10%(3Phase) 50HZ
Output power 250KVA
Secondary voltage 10.5V
Maximum short circuit current 40KA
Current accuracy ±1%
Insulation resistance ≥2.5MΩ
Work environment temperature≤40℃,humidity≤90%
Welding cylinder Size φ160-80 siamese cylinder
Maximum pressure 12000N
Input air pressure 0.6MPa
Cooling water pressure 0.15MPa~0.3MPa
Water flow 40L/min

Since our establishment in 1999, Darui has been engaged in the design and production of various types of resistance welders, including spot welders, butt welders, seam welders, and more. We have the capabilities to offer you with superior custom service according to your different welding requirements. Our welding machines are widely applied in the manufacturing of home appliances, aviation equipment, electronics, automobiles, furniture, etc. We have earned the trust of customers at home and abroad.
