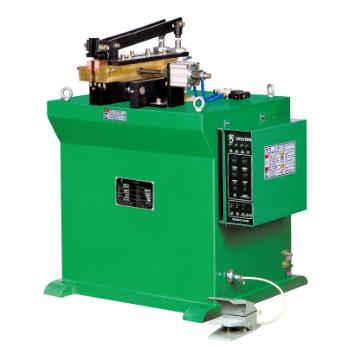

UN Portable Butt Welder

UN Portable Butt Welder

The UN portable butt welder provides consistent pressure distribution with a high output current. The device is energy saving and enables fast welding speeds with good welding quality. This welder is commonly applied for the welding of metal wires, rods, panels, and other specially shaped metal products. It is especially suited for welding reinforcing bars or other seamless welding jobs.

Features
  • Vertical pneumatic clamp and pneumatic command lever enable accurate and draw-resistant butt welds
  • Unique structure with high strength. A track carriage guide with two axes boasts high accuracy and wear- resistance, providing running stability to achieve consistent joint quality.
  • High secondary volts and microcomputer constant pressure control system for the precise control of the welding time and welding current
  • High Si content electrical steel sheets allows large current output and is helpful for energy conservation and environmental protection
  • Chillers at temperatures exceeding the dew point can be set to avoid internal sweating of the machine’s transformer and silicon-controlled rectifier (SCR), preventing electrical shorts.
Parameter
Item Unit UN-25 UN-40 UN-63 UN-80 UN-100
Rated voltage V 380 380 380 380 380
Rated frequency HZ 50/60 50/60 50/60 50/60 50/60
Rated capacity KVA 25 40 63 80 100
Rated duty cycle % 30 30 30 30 30
Insulation class B B B B B
Maximum secondary short circuit current A 8000 12000 20000 24000 28000
Maximum welding power KVA 35 63 80 100 125
Maximum pressure N 3900 3900 3900 6100 6100
Maximum forging force KN 1.5 1.5 1.5 2.5 2.5
Input air pressure Mpa 0.5 0.5 0.5 0.5 0.5
Cooling water flow L/min 5 5 5 7 7
Control mode numerical control

Since our establishment in 1999, Darui has been engaged in the design and production of various types of resistance welders, including spot welders, butt welders, seam welders, and more. We have the capabilities to offer you with superior custom service according to your different welding requirements. Our welding machines are widely applied in the manufacturing of home appliances, aviation equipment, electronics, automobiles, furniture, etc. We have earned the trust of customers at home and abroad.
