Rod Butt Welding Machine

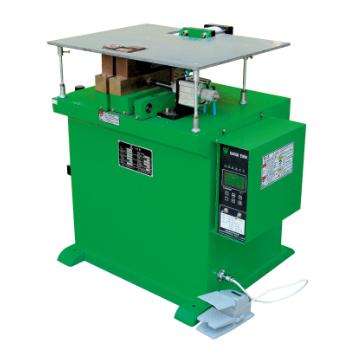

UN-T Rod Butt Welder

The UN-T rod butt welder is particularly suitable for the butt welding of metal wires and metal bars made from low carbon steel and stainless steel with diameters less than 20mm. The welding machine creates welds with reduced residual stress and removes burrs formed through a resistant welding process.

Features

Pneumatic clamping device prevents material slippage between electrodes and ensures stable welding quality.
A track carriage guide with two axes boasts high accuracy and wear-resistance and provides running stability to create consistent joints.
Easy-to-use microprocessor precision control enables quick switching between different welding parameters.

Parameter

Item	Unit	UN-25	UN-40	UN-63	UN-80	UN-100
Rated voltage	V	380	380	380	380	380
Rated frequency	HZ	50/60	50/60	50/60	50/60	50/60
Rated capacity	KVA	25	40	63	80	100
Rated duty cycle	%	30	30	30	30	30
Insulation class		B	B	B	B	B
Maximum secondary short circuit current	A	8000	12000	20000	24000	28000
Maximum welding power	KVA	35	63	80	100	125
Maximum pressure	N	3900	3900	3900	6100	6100
Maximum forging force	KN	1.5	1.5	1.5	2.5	2.5
Input air pressure	Mpa	0.5	0.5	0.5	0.5	0.5
Cooling water flow	L/min	5	5	5	7	7
Control mode		numerical control

Since our establishment in 1999, Darui has been engaged in the design and production of various types of resistance welders, including spot welders, butt welders, seam welders, and more. We have the capabilities to offer you with superior custom service according to your different welding requirements. Our welding machines are widely applied in the manufacturing of home appliances, aviation equipment, electronics, automobiles, furniture, etc. We have earned the trust of customers at home and abroad.
