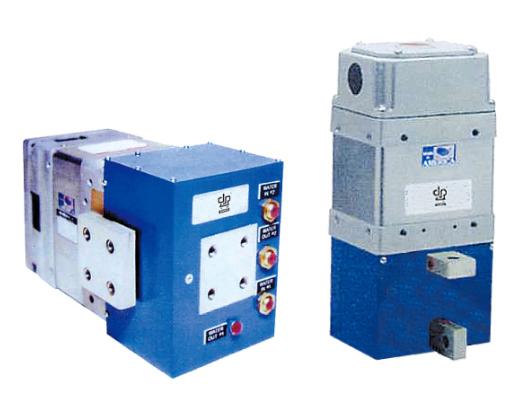

Medium Frequency Welding Transformer

Medium Frequency Welding Transformer

Our medium frequency welding transformer is designed to produce a small pulsating direct current for the welding of different metal materials, particularly those with high thermal conductivity like copper, aluminum, aluminum alloy, resulting in welds with the desired flatness and uniformly distributed interface.

Features
  • Three-phase electric power system with the power factor of nearly 1 can reduce power consumption and save energy
  • Small volume and light weight: 1/3 weight of common alternating current transformer for easy installation
  • Low demand for power supply system can save the cost of installing electrical auxiliary equipment
Parameter
Model MFBH-75 MFBH-90 MFBH-130 MFBH-160 MFBH-250
Rated voltage V 500
Rated frequency HZ 1000
Rated capacity KVA 75 90 130 160 250
Rated duty cycle % 50
Insulation class B
Maximum secondary short circuit current KA 28 29 32 34 36
Maximum output current KA 14 16 20 22 26
Continuous output current KA 6 6 9 10.5 16
Secondary no-load voltage V 7 9 10 10 12.5
Cooling water flow L/nim 12 12 18 36 48

Since our establishment in 1999, Darui has been engaged in the design and production of various types of resistance welders, including spot welders, butt welders, seam welders, and more. We have the capabilities to offer you with superior custom service according to your different welding requirements. Our welding machines are widely applied in the manufacturing of home appliances, aviation equipment, electronics, automobiles, furniture, etc. We have earned the trust of customers at home and abroad.
