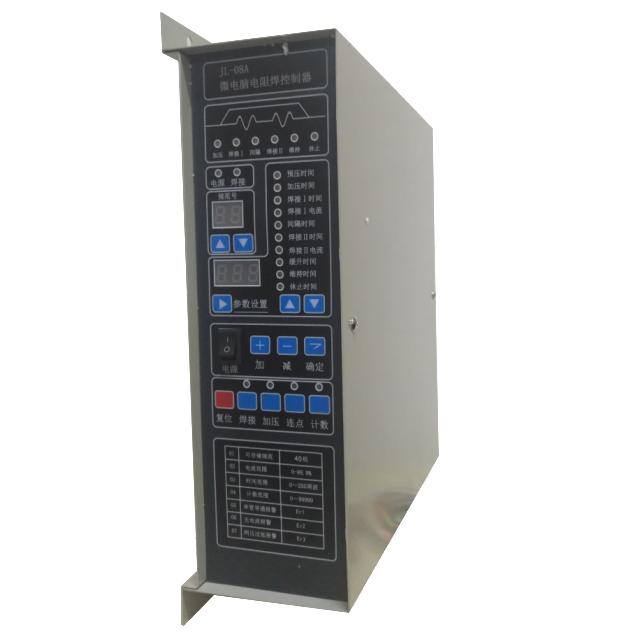

Microprocessor-Based Resistance Welding Control

Microprocessor-Based Resistance Welding Control

The DRWIII microprocessor-based resistance welding control can be widely used in spot/projection welders, horizontal/longitudinal seam welders or resistance butt welders. Equipped with four foot control pedals, it is easy to install and operate. Different modes of welding current can be switched to satisfy your various welding requirements. A closed-loop control system helps guarantee the stability of the current output for high quality welding results.

Functions
  • 40 sets of welding parameters are under microprocessor precision control.
  • Stitch welding and seam welding
  • Double-pulsed welding control for the joint of thick steel plates
  • Up slope and down slope
  • Multi-weld count
  • Error code/fault outputs
  • Long-term storage and backup of all extended functions data for more than ten years
Parameter
Model JL-08A
Item Unit
Rated voltage V 220/380
Rated frequency HZ 50/60
Rated power consumption W ≤200
Working mode continual
Insulation class B
Environment humidity 0.9
Inquiry
Other Products

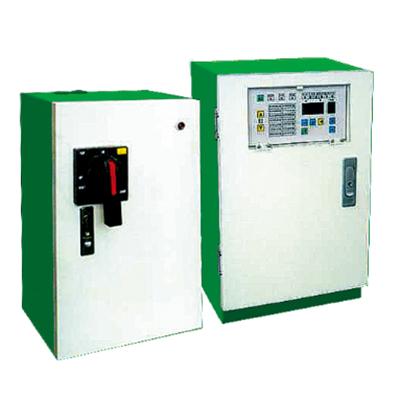

    1. Mid Frequency Inverter, Resistance Welding Control
