Circumferential Seam Welding Machine

Circumferential Seam Welding Machine

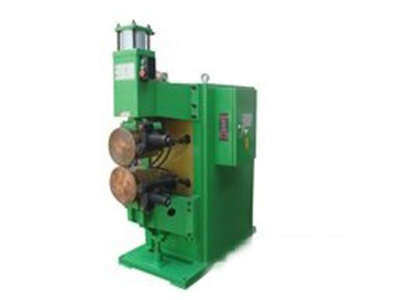

Our circumferential seam welding machine with two welding drive rolls uses a DC (direct current) welding system to produce a high quality weld joint. This welding equipment delivers strong welding penetrability to ensure excellent welding results on multilayer steel plate. It can be widely used for the welding of metal basins, metal buckets, and metal cans made from low carbon steel or stainless steel. These products are used as water towers, solar water heaters, metal dustbins, fuel tanks, and more.

Features
  • Unique structure with high strength
  • Vertical and horizontal welding
  • Two welding drive rolls with silver bearing boasts consistent electrical conductivity and reduced friction to increase its production efficiency
  • Pneumatic clamp cylinders maintain the welding accuracy and allow easy operation
  • Microprocessor controlled Constant Current Regulator to accurately control the welding time and current
  • A constant direct current with negligible inductive reactance can increase the power factor
  • Small power: only 1/3-1/5 of common resistance welder. Small impact on power grid and energy efficiency
  • Large output direct current prevents heat losses in the power source and decreases the amount of splashing for a high quality weld
  • Metallic ferromagnetic clusters produced by direct current have strong penetrability to ensure quality welding spots for multilayer steel plate
Parameter
Model FN-100 FN-125 FN-160 FN-200 FN-250
Item Unit
Rated voltage V 380
Rated frequency HZ 50/60
Rated capacity KVA 100 125 160 200 250
Rated duty cycle % 20
Insulation class B
Maximum secondary short circuit current A 18000 19500 22000 27500 29800
Maximum welding power KVA 120 150 200 250 300
Maximum pressure N 6100 6100 10000 10000 12000
Maximum welding ability mm 1.0+1.0 low carbon steel 1.2+1.2 low carbon steel 1.5+1.5 low carbon steel 2+2 low carbon steel 2.5+2.5 low carbon steel
Air pressure Mpa 0.5
Cooling water flow L/min 20 20 20 20 20
Control pattern numerical control
Weight KG
Stroke MM 0-80
Welding speed M/min 0.6-3.0

Since our establishment in 1999, Darui has been engaged in the design and production of various types of resistance welders, including spot welders, butt welders, seam welders, and more. We have the capabilities to offer you with superior custom service according to your different welding requirements. Our welding machines are widely applied in the manufacturing of home appliances, aviation equipment, electronics, automobiles, furniture, etc. We have earned the trust of customers at home and abroad.
